Plug and Abandonment
NEI-CIMBP/CIWBP
NEI-CIMBP/CIWBP Cast Iron Bridge Plugs are designed for Zone Isolation, Well abandonment or Casing repair operations.
SIZE: 2 3/8 – 20
PRESSURE RATING: 10,000 PSI
ELASTOMER: NBR/HNBR/VITON/AFLAS
TEMPERATAURE RATING: 325 DEG F
MATERIAL: CAST IRON
SETTING MECHANISM: MECHANICAL/WIRELINE
RUNNING TOOLS: NEI-NSLST / NEI-NWAK
NEI-CIMBPC/CIWBPC
NEI-CIMBPC/CIWBPC Cement retainer is a high quality tool for squeeze cementing operations.
SIZE: 2 3/8 – 20
PRESSURE RATING: 10,000 PSI
ELASTOMER: NBR/HNBR/VITON/AFLAS
TEMPERATAURE RATING: 325 DEG F
MATERIAL: CAST IRON
SETTING MECHANISM: MECHANICAL/WIRELINE
RUNNING TOOLS: NEI-NSLST-C / NEI-NWAK
NEI-HMBN
NEI-HMBN Hydro-Mechanical Bridge Plug is designed to be actuated Hydraulically by dropping a setting ball and set completely by mechanical manipulation, thereby eliminating the need of complex setting tools and adapters.
SIZE: 2 3/8 – 20
PRESSURE RATING: 10,000 PSI
ELASTOMER: NBR/HNBR/VITON/AFLAS
TEMPERATAURE RATING: 325 DEG F
MATERIAL: CAST IRON
SETTING MECHANISM: HYDRAULIC SET

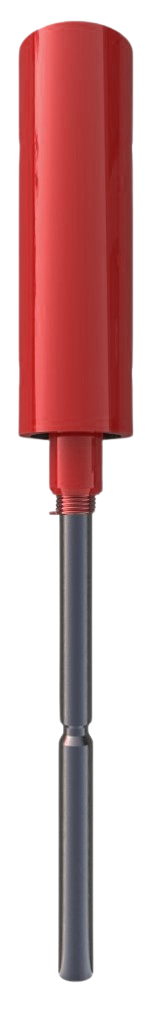

NEI-WAKN
NEI-WAKN Wireline Adapter Kit, is used in conjunction with Wireline Setting Equipment, like
Packers, Bridge Plugs and Cement Retainers
NEI-SLSTN
NEI-SLSTN Snap Latch Setting Tool is designed to allow for Cementing thru a Wireline or Mechanical Cement
Retainer and to mechanically set the NEI-CIMBP/NEI-CIMBPC
NEI-NRBPM
NEI-NRBPM The Mechanical Set Retrievable Bridge Plug is a high pressure plug for multiple zone and selective single zone operations such as acidizing, fracturing, cementing and testing. It features a large
internal by-pass to reduce swabbing when running and retrieving.
SIZE: 4 1/2- 13 3/8
PRESSURE RATING: 10,000 PSI
ELASTOMER: NBR/HNBR/VITON/AFLAS
TEMPERATAURE RATING: 325 DEG F
MATERIAL: CARBON STEEL/CHROME
SETTING MECHANISM: MECHANICAL
RUNNING TOOLS: NEI-NRBPM-RT
NEI-NRBPW
NEI-NRBPW Wireline Set Retrievable Bridge Plug is a high pressure plug for multiple zone and selective single zone operations such as acidizing, fracturing, cementing and testing. It features a large
internal by-pass to reduce swabbing when running and retrieving.
SIZE: 4 1/2- 13 3/8
PRESSURE RATING: 10,000 PSI
ELASTOMER: NBR/HNBR/VITON/AFLAS
TEMPERATAURE RATING: 325 DEG F
MATERIAL: CARBON STEEL/CHROME
SETTING MECHANISM: MECHANICAL
RUNNING TOOL: NEI-WAKN
RETRIEVING TOOL: NEI-NRBPM-RT
